90kw, 96 KW Heating Capacity Constant Water Temperature Heat Pump for Swimming Pool

Name: 90kw 96 KW Heating Capacity Constant Water Temperature Heat Pump for Swimming Pool
Brand: TRT or OEM
Price: 1 USD

Wholesale 90kw, 96 KW Heating Capacity Constant Water Temperature Heat Pump for Swimming Pool from china suppliers

Brand Name : TRT or OEM

Model Number : TRT-250HP

Certification : CE,CB

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : TT

Supply Ability : 2000

Delivery Time : 15-20 days

Packaging Details : plywood

Contact Now

Model	TRT-100PHPV	TRT-120PHP	TRT-200PHP	TRT-240PHP
Metel plate	Galvanized steel/Spray/Gray/White/ 304 Stainless Steel
Body size(LWH)	15008001560		185010001950	200011002080
Compressor	Copeland
Refrigerant	R407C
Power Supply	380V/50Hz
Condenser	Titanium tube heat exchanger
Condenser	Titanium tube heat exchanger
Gas-liquid separator	KFR120WLG-A*2	KFR120WLG-A*2	KFR120WLG-A*4	KFR120WLG-A*4
Four-way Valve	SHF-20A-46*2	SHF-20A-46*2	SHF-20A-46*4	SHF-20A-46*4
Expansion Valve	3.2*2	3.2*2	3.2*4	3.2*4
AC contactor	(220V-25A)*2	(220V-32A)*2	(220V-25A)*4	(220V-32A)*4
Motor/ Fan Blade	YWF.A6S-550S-5DIA00*2	YWF.A6S-550S-5DIA00*2	YWF.A6S-600S-5DIA00*2	YWF.A6S-630S-5DIA00*2
Controller	Double System	Double System	Four System	Four System
Low Pressure Switch	0.05/0.15MPa	0.05/0.15MPa	0.05/0.15MPa	0.05/0.15MPa
High Pressure Switch	2.4/3.0MPa	2.4/3.0MPa	2.4/3.0MPa	2.4/3.0MPa
Power Line	310mm²+24mm²	310mm²+24mm²	316mm²+26mm²	316mm²+26mm²
Packing	Polywood Packing	Polywood Packing	Polywood Packing	Polywood Packing
Rated Heating Capacity(kW)	38	44	76	86
Input Power(kW)	7.2	8.4	14.4	16.8
Rated Current(A)	16	18	32	36
COP	5.28	5.24	5.28	5.12
Rated outlet water temperature(℃)	28	28	28	28
Max outlet water temperature(℃)	40	40	40	40
Water Flow (L/H)	8168	9458	16336	18486
Waterproof Grade	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate	I	I	I	I
Noise(dB(A))	≤66	≤68	≤68	≤72
Net Weight/ Gross Weight(kg)	280/295	372/412	482/532	582/642
Pipe size/ Inner diameter(mm)	DN32	DN50	DN50	DN65
Remark: Constant water temperature 28℃, Dry bulb temperature 20℃, Wet bulb temperature15℃.

90kw, 96 KW Heating Capacity Constant Water Temperature Heat Pump for Swimming Pool

Description:

TRT Pool Heat Pump provides the maximum energy efficiency and reliability. Working efficiently, the heat pump units absorb another 6 times of free heat from the ambient environment, and transfer it to the pool water, which makes the heating process ecological and cost saving.

90kw, 96 KW Heating Capacity Constant Water Temperature Heat Pump for Swimming Pool

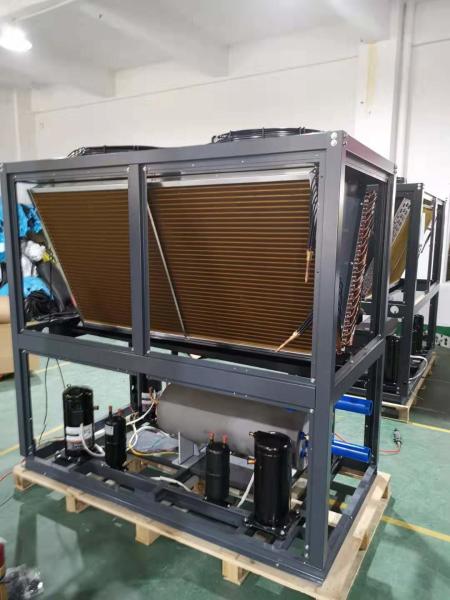

90kw, 96 KW Heating Capacity Constant Water Temperature Heat Pump for Swimming Pool Images
